BizLink Test Centre
To ensure long-lasting requirements

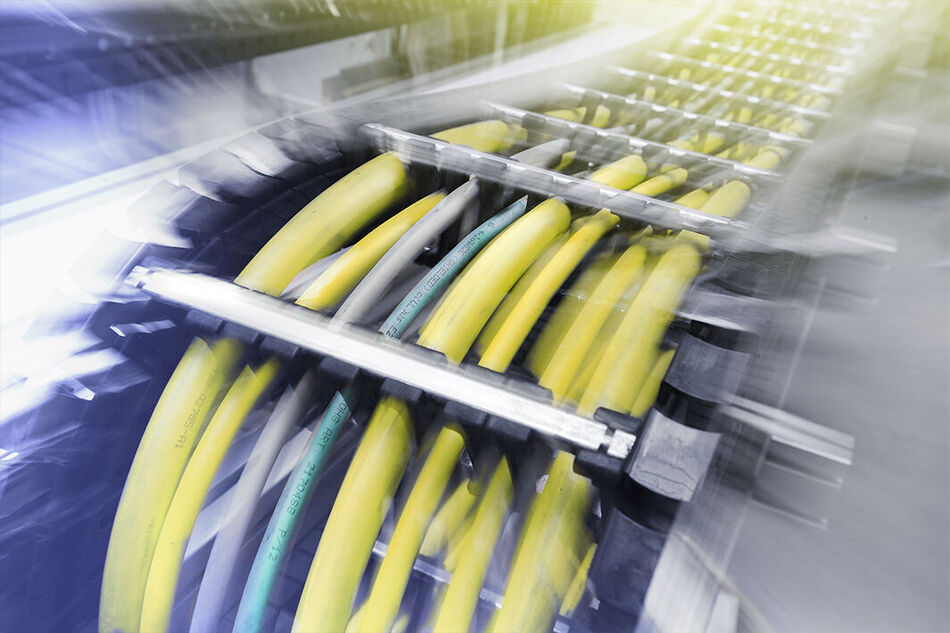

Drag chain tests
Our test routes have different travel ranges, accelerations and travel speeds. Each test system can test up to 40 cables over the equivalent of several years. The longest traverse path measures 50 m.

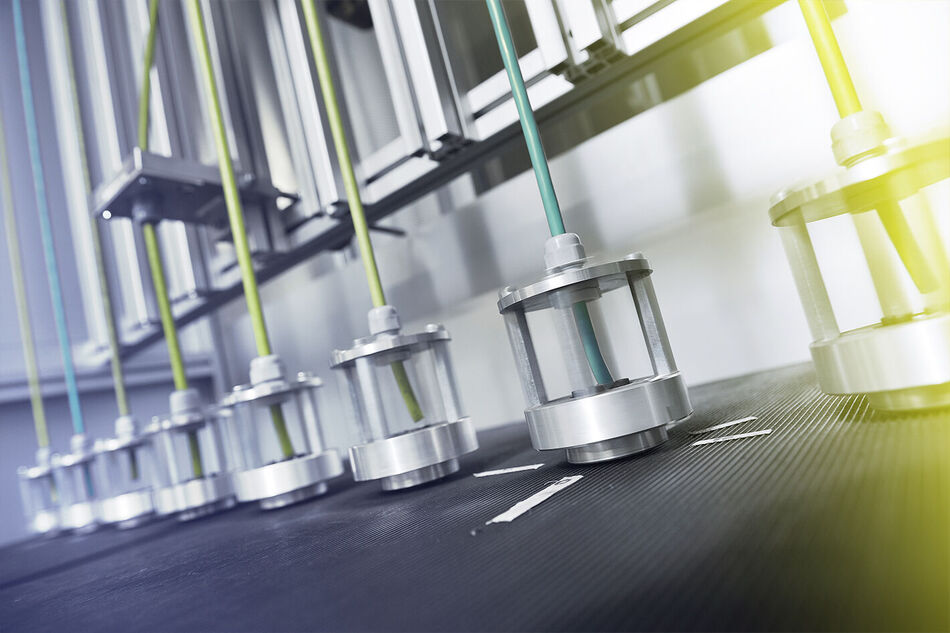

Torsion tests
In different torsion and torsional bending machines, the cables are tested for twisting and traction around their own axes. They are subjected to a torsional movement of up to +/– 360° in length from 0.3 to 1 m.

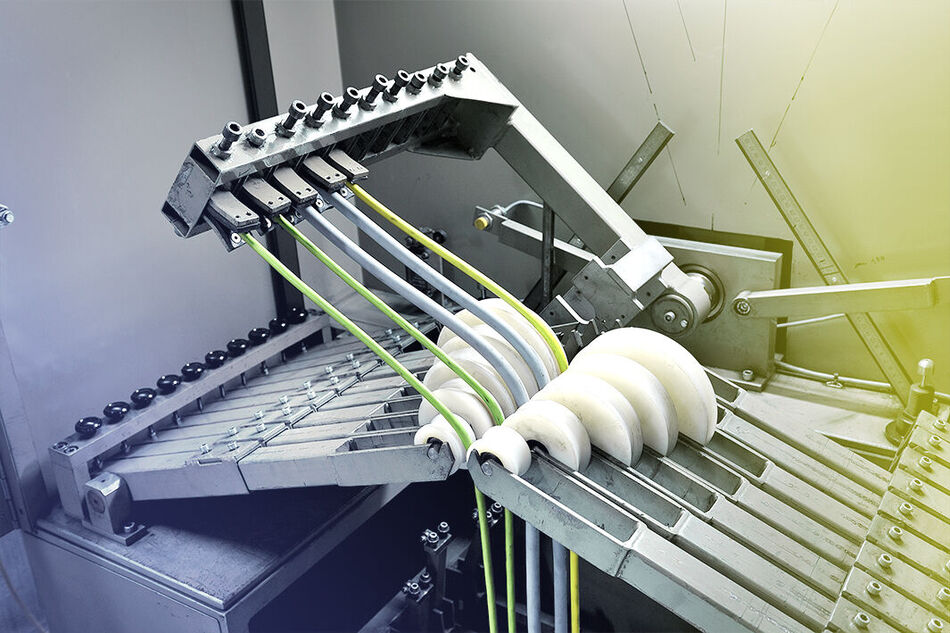

Flexlife tests
In test systems with pulleys for different bending radii, a test is performed to see whether the cable withstands frequent bending cycles. The used pulleys have a diameter of 20 to 250 mm.
Tested quality cables
Due to the increasing demands on quality and lifetime, the cables have to withstand extreme continuous loads in order to prove their durability. In our drag chain test centre the cables are tested for extreme loads.
Watch our video and see the quality of our cables.
In-cable production testing
Our cables are manufactured to the highest standards of quality and are subject to constant and rigorous testing throughout the manufacturing process as well as at the final stage. Process-related data is constantly monitored “inline” throughout the production process.
It is also our standard practice to conduct spot checks testing cable properties either according to specific standards or on the basis of customer requirements.
On request, individual test records are made available.
For our customers that signifies: secured quality.
Examples of the properties tested include:
- Wall thickness
- Diameter
- Eccentricity of the conductor
- Adhesion and stripping properties
- Abrasion
- Resistance to extreme cold or heat
- Shearing and tensile stress
- Reversed bending tests
- Flexlife tests
- Torsion tests

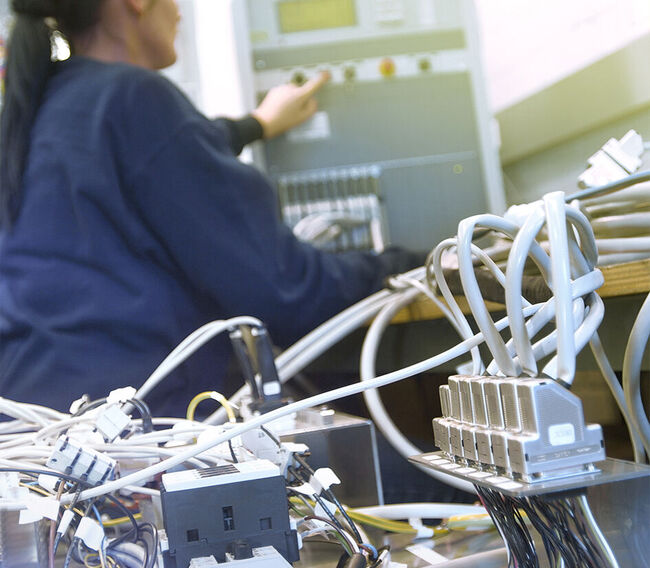

Cable assembly testing
All the cable systems leaving our factories will have been subjected to complete and extensive testing. We can also use customised testing and measuring methods.
Final inspection
Visual check for any obvious deficiencies, electrical test for continuity (network test), pin assignment, connector examination, insulation, electric strength; high-frequency parameters such as insertion and return loss, mode conversion and skew using test fixtures specially optimised for each particular product.

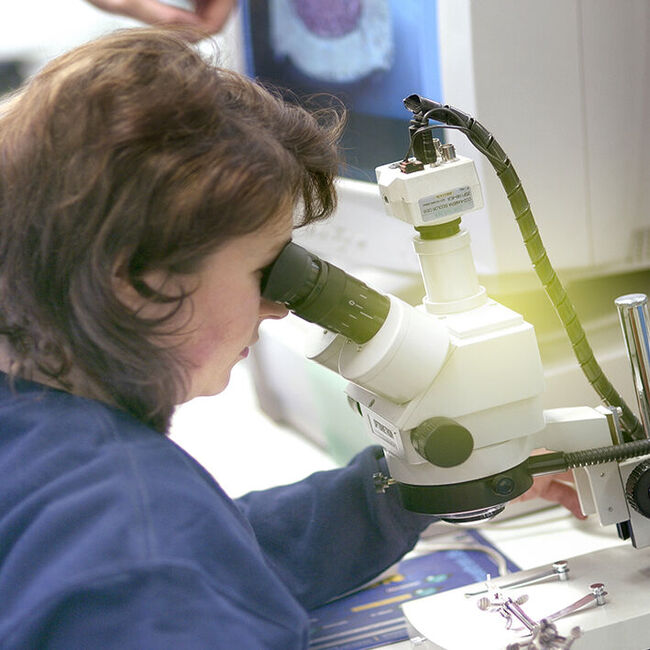

Micrograph laboratory
Micro sectioning test with subsequent documentation; archiving of crimping results at the request of the customer. Software-based micrograph generation and analysis functionality with information on the compression level, crimp height, surface area/nominal cross section calculation.

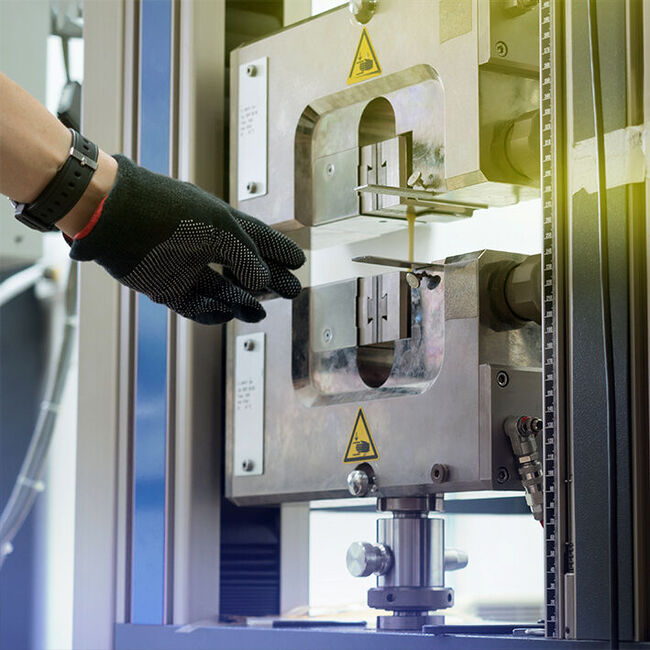

Tensile strength test
Similar to the micrograph test, this is also a destructive test where the withdrawal force at which the cable disengages from the cable connection is determined and documented before commencing.

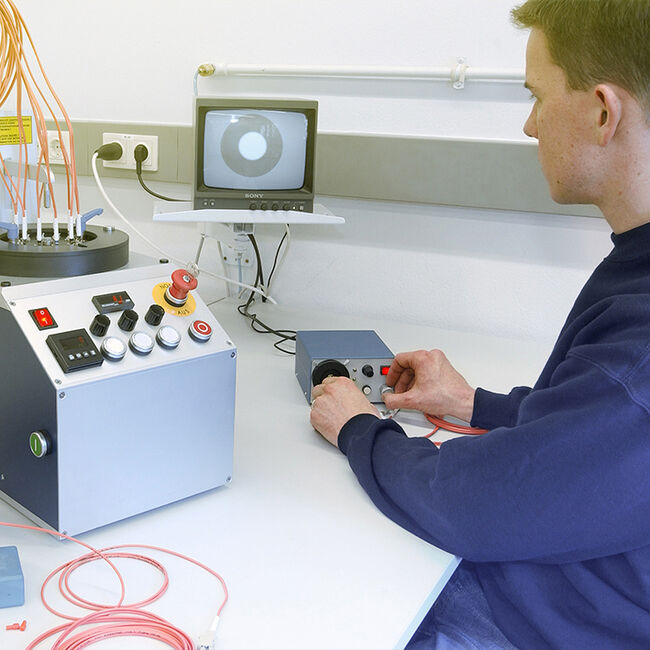

Measuring stations for polymer and fiber optic cables
Test for compliance with attenuation values, front-surface testing, transit (through) line measurement.
