Examples of Complete Robotic Systems with LSH 3, SLS, LSC or Special Solutions




ABB

Red ABB 6600 robot with Cantilever solution, axis 3-6, a complete system solution.

Floor post balancer dresspack

Part no.
DPS0003

Robot
ABB 6600

Description
Floor post balancer dresspack, axis 3 – 6

Yellow ABB 6600 robot with yellow smooth tube system, axis 3-6.

Yellow smooth tube system solution

Part no.
DPS0004

Robot
ABB 6600

Description
System support yellow smooth tube system for welding, axis 3 – 6

ABB IRB7600 340/2.8 robot with complete system example, LSH dresspack

LSH 3 solution

Part no.
DPS0083

Robot
ABB IRB7600

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 48/70 mm, e.g. handling

ABB robot white with complete system support BizLink dresspack LSH 3, axis 1 – 6, corrugated hose Ø 48/70 mm, e.g. glueing with double dosing unit (with 2 heating tubes)

LSH 3 solution

Part no.
DPS0034

Robot
ABB IRB6700

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, corrugated hose Ø 48/70 mm, e.g. glueing with double dosing unit (with 2 heating tubes)


autonox

Grey AUTONOX robot with empty dresspack system LSH 3, axis 3-6.

Empty dresspack LSH 3 solution

Part no.
DPS00000307

Robot
autonox AT_00005, AT_00006, AT_00010, AT_00028

Description
Empty dresspack system LSH 3 angled J3-J6

Grey AUTONOX robot with empty dresspack system in black.

Empty dresspack solution

Part no.
DPS00000300

Robot
autonox AT_00005, AT_00006, AT_00010

Description
Empty dresspack system J1-J3

Grey AUTONOX robot with empty dresspack system in black.

Empty dresspack solution

Part no.
DPS00000305

Robot
autonox AT_00028

Description
Empty dresspack system J1-J3

Empty dresspack LSH 3 solution

Part no.
DPS00000302

Robot
autonox AT_00005, AT_00006, AT_00010 and AT_00028

Description
Empty dresspack system LSH 3 straight J3-J6

Chery

Spring foot solution

Part no.
DPS0006

Robot
CHERY

Description
Complete system support, axis 1– 6

Comau

Silver robot COMAU SMART H1 with LSH dresspack, a complete system example.

LSH 3 solution

Part no.
DPS0035

Robot
COMAU SMART H1

Description
Complete system support for BizLink dresspack LSH 3, axis HIP-6, Corrugated hose Ø 48 mm, e.g. riveting, flow drilling, glueing

Red COMAU NH2-NH3 robot with yellow smooth tube system, axis 3-6.

Yellow smooth tube system solution

Part no.
DPS0010

Robot
COMAU NH2-NH3

Description
System support for yellow smooth tube system, welding, axis 3 – 6

Denso

DENSO robot with blue BizLink dresspack solution.

Dresspack solution

Part no.
DPS0040

Robot
Denso

Description
Complete system support BizLink dresspack, axis 1 – 6, e.g. handling

Fanuc

Yellow FANUC R2000iB robot with yellow smooth tube, axis 3-6, and corrugated dresspack, axis 1-3.

Yellow smooth tube system solution

Part no.
DPS0014

Robot
FANUC R2000iB

Description
System overview for yellow smooth tube system axis 3 – 6 and corrugated dresspack axis 1 – 3, welding

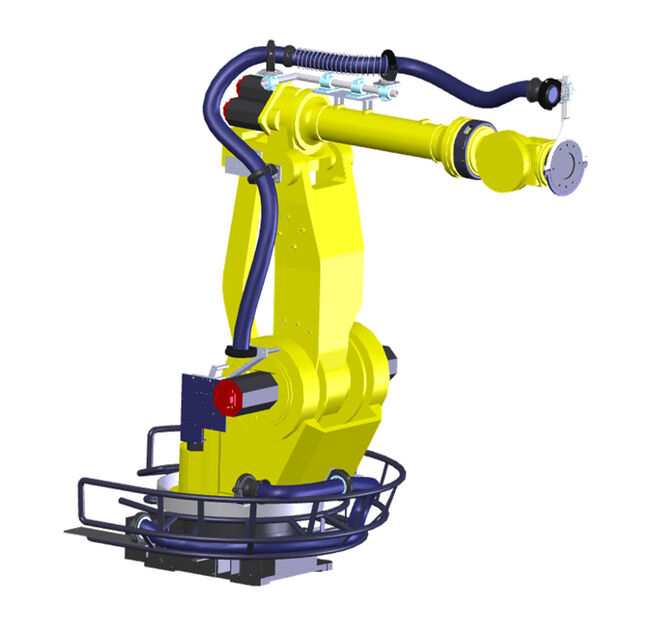

Yellow FANUC M900 robot with open spring return system, axis 1-2 and axis 2-6.

Open spring return solution

Part no.
DPS0015

Robot
FANUC M900/ 350kg

Description
Open spring return system, axis 1 – 2 and axis 2 – 6

Yellow FANUC R2000iC/125L robot with complete system example, LSH dresspack

LSH 3 solution

Part no.
DPS0045

Robot
FANUC R2000iC / 125L

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 70 mm, e.g. handling

Yellow FANUC R2000iC-270F with LSH dresspack, a complete system example.

LSH 3 solution

Part no.
DPS0049

Robot
FANUC R2000iC-270F

Description
Complete system support for BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 48 mm, e.g. handling

Hyundai

White Hyundai HS200 robot with complete system example, LSH dresspack.

LSH 3 solution

Part no.
DPS0052

Robot
HYUNDAI HS200

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 70 mm, e.g. welding or handling

Kawasaki

LSH 3 solution

Part no.
DPS0053

Robot
KAWASAKI ZX200S

Description
Complete system support BizLink dresspack LSH 3, axis 3 – 6, e.g. welding or handling

White Kawasaki MX700N robot with LSH dresspack, a complete system example.

LSH 3 solution

Part no.
DPS0054

Robot
KAWASAKI MX700N

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, with basket, e.g. clinching

Kuka

Robot KUKA KR210 R2700 extra, Quantec, with LSC solution, a complete system example.

LSC solution

Part no.
DPS0057

Robot
KUKA KR210 R2700 extra, Quantec

Description
Complete system support BizLink LSC, axis 1 – 6, Corrugated hose Ø 48/70 mm, laser gun (e.g. IPG)

Orange KUKA series 2010 quantec robot with LSH dresspack, a complete system example.

LSH 3 solution

Part no.
DPS0055

Robot
KUKA series 2010 Quantec

Description
Complete system support BizLink dresspack LSH 3, axis HIP-6 & axis 1 – 6, Corrugated hose Ø 48/70 mm, e.g. glueing, riveting or flow drilling

Robot KUKA series 2010, Quantec, with LSH dresspack, a complete system example.

LSH 3 solution

Part no.
DPS0067

Robot
KUKA series 2010 Quantec

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 70 mm, e.g. spot welding, handling

Mitsubishi

Grey Mitsubishi RV-6SL robot with corrugated hose solution in blue, axis 1-4.

Solution with corrugated hose

Part no.
DPS0022

Robot
MITSUBISHI RV-6SL

Description
Complete system overview axis 1– 4, corrugated hose Ø 29 mm

Motoman

Blue Motoman MS210 robot with LSH 3 dresspack, axis 1-6, and corrugated hose.

LSH 3 solution

Part no.
DPS0078

Robot
MOTOMAN MS210

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 70 mm, e.g. handling

Blue MOTOMAN MS165 with LSH 3 dresspack system, axis 1-6, and corrugated hose.

LSH 3 solution

Part no.
DPS0082

Robot
MOTOMAN MS165

Description
Complete system support BizLink dresspack LSH 3, axis 1 – 6, Corrugated hose Ø 70 mm, e.g. handling

Nachi

White NACHI SRA166-01 robot with LSH 3 dresspack und corrugated hose, a complete system.

LSH 3 solution

Part no.
DPS0069

Robot
Nachi SRA166-01

Description
Complete system support BizLink dresspack LSH 3, axis 3 – 6, Corrugated hose Ø 70 mm, e.g. welding

White NACHI SRA210-01 robot with LSH 3 dresspack, axis 3-6, and corrugated hose, a complete system example.

LSH 3 solution

Part no.
DPS0070

Robot
Nachi SRA210-01

Description
Complete system support BizLink dresspack LSH 3, axis 3 – 6, Corrugated hose Ø 70 mm, parallel guidance, e.g. welding

OTC

White OTC robot with dresspack LSH 3 and corrugated hose, a complete system solution.

LSH 3 solution

Part no.
DPS0071

Robot
OTC FD-V210, -V166

Description
Complete system support BizLink dresspack LSH 3, axis HIP-6, Corrugated hose Ø 48 mm, with cantilever system, e.g. handling

LSH 3 solution

Part no.
DPS0072

Robot
OTC FD-V166, -V210

Description
Complete system support BizLink dresspack LSH 3, axis HIP-6, Corrugated hose Ø 48/70 mm, with cantilever system, parallel guidance, e.g. laser, handling

Stäubli

Yellow STÄUBLI robot with blue corrugated hose solution, a complete system support.

Corrugated hose solution

Part no.
DPS0075

Robot
STÄUBLI TX90XL

Description
Complete system support, axis 1 – 6, Corrugated hose Ø 36 mm, electrical and air intake application

Yellow Stäubli robot with complete system example.

Corrugated hose solution

Part no.
DPS0076

Robot
STÄUBLI TX90L

Description
Complete system support, axis 1 – 6, Corrugated hose Ø 36 mm, e.g. handling

Special Machine Solution

Complete system example with corrugated hose.

Solution with corrugated hose

Part no.
DPS0027

Description
Special machine solution

Universal Robots

Silver Universal Robot UR10 with BizLink B-Flex complete kit.

BizLink B-Flex solution

Part no.
DPS0077

Robot
Universal Robot, UR10

Description
Complete system support, axis 1 – 6, Corrugated hose Ø 23 mm, e.g. handling (pick & place) or measurement

Publication

Catalogue, Dresspacks & Integration-Ready Robots Robotics,

Download (pdf)

Catalogue, Empty dresspack systems Robotics,

Download (pdf)

Flyer, LSH 3 Robotics,

Download (pdf)
