作为解决方案提供商，我们不仅提供电缆和管线包，同时我们也研发优质管线包所需的所有组件。各种支架部件、各种安装组件和创新的连接器，仅仅只是我们众多组件中的一些例子。

材料优质。寿命较长。操作简单。

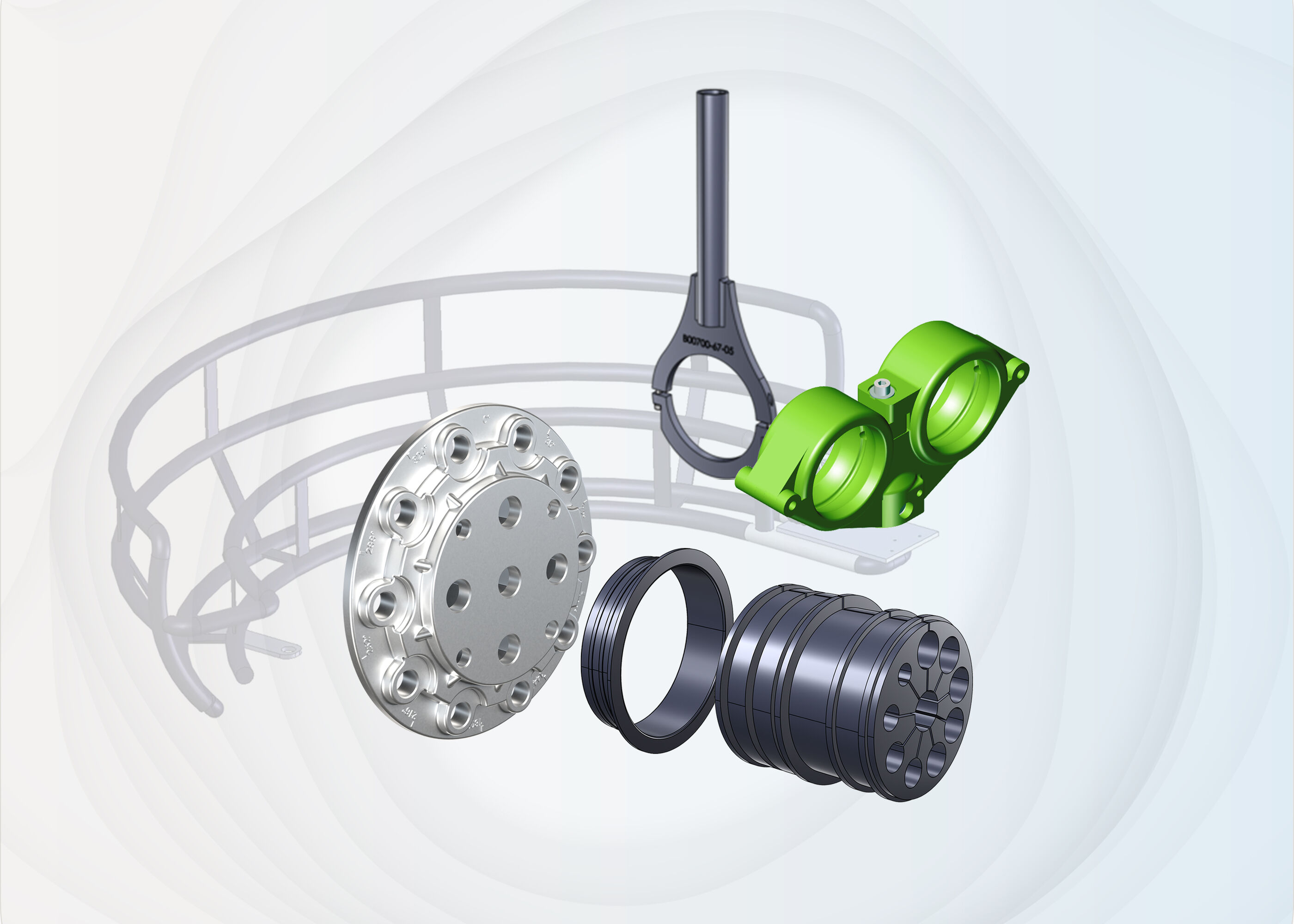

Illustration of robotic assemblies and components, such as a grey assembly basket, a silver adapter plate, and a green double bracket.

Promotional illustration showcasing key components of a robotic dresspack system. The image features various cable management elements, including a cable star, wrist support, bracket, adapter components, and mounting accessories used for routing and protecting cables and hoses in industrial robotic applications. Together, these components support reliable cable guidance, reduced mechanical stress, and optimized dresspack performance across a wide range of automation systems.

用于波纹护套管的组件

用于波纹护套管的所有组件都可以选择不同的标称宽度 (mm)：17、23、29、36、48、70、95。所示的组件只是我们产品组合的一小部分。如需帮助，请联系我们。

BizLink Proflex Ø70 mm corrugated hose for robotic cable management, designed to protect and guide cables and hoses in dynamic applications.

BizLink proflex 波纹护套管，Ø 70 mm

Pressure spring for Ø70 mm corrugated hose, designed to provide support and bend protection in robotic cable management systems.

压力弹簧用于波纹护套管 Ø 70，钢丝 5 mm，长 1500 mm

Ø70 mm cable star for ball joint termination with individually drilled passages for organized cable and hose routing.

电缆分线器 Ø 70 mm，用于球节喇叭口，单独钻孔

Robotic dresspack assembly featuring a Ø70 mm bracket with ball joint termination and integrated cable strain relief.

组装举例 支架 Ø 70 mm + 球节喇叭口 + 电缆分线器 Ø 70 mm

Ø70 mm corrugated hose end termination for robotic cable management systems, providing secure hose fixation and protection.

波纹护套管终端端子，Ø 70 mm

Black spring end piece for BizLink dresspack LSH-line, for Ø70 mm corrugated hose systems

弹簧末端件，用于波纹护套管，Ø 70 mm

Ball joint termination with half-shell for Ø70 mm robotic dresspack systems, enabling flexible cable routing and movement compensation.

球节喇叭口 Ø 70 mm

Ø70 mm cable star for ball joint termination, featuring individually drilled holes for organized cable and hose routing.

电缆分线器 Ø 70 mm，用于球节喇叭口，单独钻孔

Half-shell component for Ø70 mm corrugated hose used in robotic dresspack and cable management systems.

固定环用于电缆分线器 Ø 70 mm

Ø70 mm bracket for robotic dresspack systems, providing secure mounting and cable management support.

支架 Ø 70 mm

Red marker ring for robotic cable management systems

红色标识环，用于波纹护套管 Ø 70 mm，有开口

Protection donut for Ø70 mm corrugated hose, designed to protect the hose from wear and impact in robotic cable management systems.

保护球，用于波纹护套管 Ø 70 mm

Axis 6 wrist support with Ø125 mm clamp for ABB IRB 4400 robots, designed to guide and support robotic dresspack systems.

6轴支架，法兰 Ø 125 mm，管 Ø 32 mm，机器人类型：ABB IRB 4400

Aluminum adapter plate for robotic use between bracket and tube clamp piece

转接板用于支架和管夹件之间, 适用于支架 Ø 48 mm 和 70 mm

120 × 85 mm swivel plate for robotic cable management systems, enabling controlled rotational movement of mounted components.

旋转底座，120 x 85 mm

光滑管线包组件

光滑管线包组件都可以选择以下标称宽度 (mm)：40、60、80、100。所示的组件只是我们产品组合的一小部分。



Green 40 mm adjustable single bracket used for robotic cable management systems.

旋转式单支架，Ø 40 mm，每次可调节 22.5°

Green 60 mm adjustable single bracket used for robotic cable management systems.

旋转式单支架，Ø 60 mm，每次可调节 22.5°

Green rotating double bracket for smooth tube systems with Ø80 mm and Ø40 mm tube mounts, adjustable in 45° increments.

旋转式双支架，Ø 80+40 mm，每次可调节 45°

50 mm high universal metal support for mounting a single bracket in robotic smooth tube cable management systems.

通用金属支架，50 mm 高，可用作单个支架

100 mm high fluted metal support for mounting a single bracket in robotic smooth tube cable management systems.

有凹槽的金属支架，100 mm 高，可用作单个支架

Yellow rotating boot with 23 mm inner diameter, mounted with a tube clamp for Ø34 mm pipe in a robotic smooth tube cable management system.

黄色旋转式保护罩，内径 23 mm / 适合管径 34 mm 的管夹 (2 x) 此组装实例展示了黄色旋转式保护罩、相应的支架和金属制成以及直径为 34mm 的管夹。

Yellow rotating boot with integrated strain relief and 23 mm inner diameter for robotic smooth tube cable management applications.

黄色靴，可旋转和释放应力，内径 23 mm

支架组件

我们的强项是智能结合组件和配件，为电气、通信和其他材料（如水、空气等）的形成轴 1 - 6 的安全可靠的安装解决方案。可以针对不同的接口、悬臂系统和篮子进行定制——我们的经验就是您的优势。

显示的插图是应用实例的小截面。对于每种机器人，都可以进行修改。我们不仅可以针对特定的机器人，而且可以针对特殊的机器，并根据现场的条件对这些组件进行修改。

Assembly holder for robot axis 1 with integrated mounting bracket and circular clamp for robotic dresspack support.

产品编号
ASS0001

描述
组件支架轴 1

Assembly holder for robot axis 2 with extended support arm and circular clamp for robotic dresspack mounting.

产品编号
ASS0007

描述
组件支架轴 2

Assembly holder for robot axis 3 with dual mounting brackets and circular dresspack support clamps.

产品编号
ASS0014

描述
组件支架轴 3

Assembly holder for robot axis 4 with upper and lower ring clamps for robotic dresspack attachment.

产品编号
ASS0015

说明
组件固定器轴 4

Axis 5 assembly holder with circular clamp and connector ring.

产品编号
ASS0020

说明
组件固定器轴 5

Assembly holder for robot axis 6 with multiple support clamps for secure robotic dresspack routing and fixation.

产品编号
ASS0033

说明
组件固定器轴 6

Spring foot holder for parallel motion with dual mounting rings.

产品编号
ASS0036

说明
弹簧脚组件 250 平行运动

System support assembly for BizLink LSH-line robotic dresspack on robot axis 3, featuring a support frame and integrated cable management components.

产品编号
ASS0037

说明
系统支持组件，针对BizLink 贸联 LSH-line (LSH) 管线包，轴 3

悬臂系统组件

Height-adjustable cantilever system for robotic cable management, featuring a vertical support column and articulated support arm.

产品编号
ASS0041

描述
组件悬臂系统可调高度

Cantilever system assembly with vertical support column and integrated cable management components for robotic applications.

产品编号
ASS0042

描述
组件悬臂系统

Cantilever system assembly with vertical support post and horizontal crossbeam for robotic cable management applications.

产品编号
ASS0043

说明
组件悬臂系统

Cantilever system assembly with vertical support column and integrated dresspack mounting bracket for robotic cable management.

产品编号
ASS0044

说明
组件悬臂系统

篮子组件

Metal assembly basket as a guidance for robotic corrugated hoses

产品编号
ASS0045

描述
篮子组件

Circular robotic assembly basket.

产品编号
ASS0046

描述
篮子组件

Curved assembly basket for robotic dresspack management, designed to guide and support cables and hoses during robot movement.

产品编号
ASS0047

描述
篮子组件

Circular robotic assembly basket with side guard and mounting brackets.

产品编号
ASS0048

描述
篮子组件

接口

Interface assembly for robot axis 1, providing a connection point for robotic dresspack routing and utility integration.

产品编号
ASS0049

描述
接口轴 1

Interface assembly for robot axis 2, providing secure integration of cables, hoses, and utility connections within a robotic dresspack system.

产品编号
ASS0054

描述
接口轴 2

Interface assembly for robot axis 3, integrating electrical and media connections within a robotic dresspack system.

产品编号
ASS0061

描述
接口轴 3

出版物

产品册, Dresspacks & Integration-Ready Robots 机器人,

下载 (pdf)

产品册, Empty Dresspack Systems 机器人,

下载 (pdf)

单页, LSH 3 机器人,

下载 (pdf)
