Custom Hybrid Cables & Cable Assemblies

BizLink elocab is surely your partner for Hybrid Round Cables Co-Developed precisely to your requirements, despite the application's needs.

elocab Hybrid Round Cables for Both Cost and Space Reduction

BizLink elocab designs custom hybrid cables that supports industrial applications specifically requiring complex component for high resistance. Our hybrid round cables highly perform against the harsh environments as well as under repetitive motions such as torsion and flexing. We feature products that can exceed 150 million flex cycles.

Our Hybrid / Composite custom round cables combine all in all complex supply and control tasks. Custom cables go far beyond copper-based transmission. The required installation space can be significantly reduced and fitted at the same time with optimized cable construction, For e.g., in a highly integrated round cable. Critical advantages of BizLink's Custom Cables:

  • Low susceptibility to interference.
  • Longer service life.
  • Hybrid cables sources from a batch size as small as 100 m.

BizLink elocab is your partner for custom cables tailored precisely to your requirements, nonetheless the application's needs.

Applications for Custom Hybrid Cables

Custom High Flex Cables

  • Linear Drives
  • Semiconductors
  • Class 1 Clean Room Compatible
  • and much more

Custom Surgical Robotic Cables

  • Computer-assisted surgery (CAS)
  • Information systems
  • Electro surgical systems
  • and much more

Custom Industrial Cables

  • Warehouse logistics robots
  • Collaborative robotics
  • Humanoid robots
  • and much more

Overview of Custom Cables and Assemblies

Custom High Performance Flex Cables

  • Bizlink’s HPF Cables can be designed to exceed 150 million cycles
  • Performs at tight bend radii
  • Customizable with a wide variety of components.
  • Components can include wide varieties of single wires, twisted pairs, coaxial cables, data cables & optical fibers
  • ISO Class 1 Cleanroom Rated

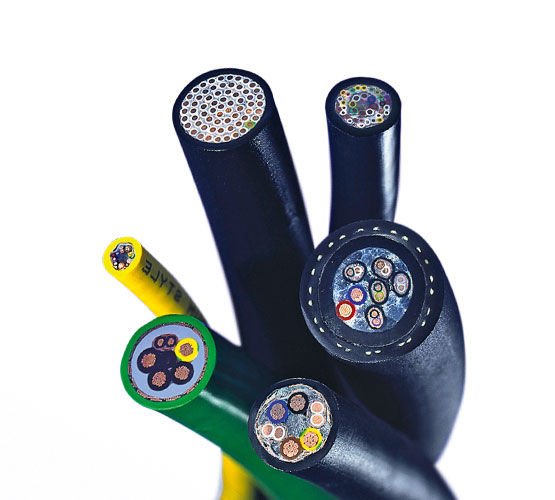

Superior Hybrid Round Cables

  • Collaborative Concept Development customized to your specific application
  • Hybrid designs can integrate many features, including fiber optics, coax, air/fluid, hoses, etc.
  • Manufactured to CE, UL, and CSA standards
  • Optimized for torsion
  • minimum orders of 300ft/100m

Flexible Sleeve Flat Cable Technology

  • Up to 10 million flex cycles at tight-bend radii
  • Interchangeable Flexible components such as single wires, twisted pairs, coaxial cables, data cables & optical fibers
  • Maximum flexibility, optimized low friction and ultra-low particulate wear
  • Self-supporting structure
  • ISO Class 1 cleanroom rated

Differentiators of Custom Hybrid Cables

Reduced Cable Breakage

  • Resistance to mechanical stress, crush, and tension
  • Extra strength cable available

Experience with Difficult Projects

  • Co-Development Partner with a history of Solving problems for complex applications

300 ft / 100 m MOQ

  • Low minimum order quantity to reduce your development cost

Services Available for Custom Hybrid Cables

Technical Capabilities

  • Complete assembly solutions
  • Strip & crimp AWG50 to AWG12
  • Injection overmold capabilities
  • Soldered & bolted connections, heat shrinking, potting

Testing & Quality Assurance

  • Pin assignment
  • Electrical continuity
  • Insulation test for high voltage
  • Custom test requirements available upon request

Your Benefits

  • Rapid Prototyping.
  • State-of-the-art equipment & machinery
  • 360 Quality management system
  • Collaborative Concept to  Development Engineering Staff. intONE™

WE DESIGN AND MANUFACTURE CUSTOM CABLE SOLUTIONS FOR GROWTH INDUSTRIES

WE LOVE TO SOLVE YOUR CUSTOM CABLE CHALLENGES AND THRIVE ON EXTREMELY COMPLEX PROJECTS

Take advantage of the expertise of 17,000 people in 32 locations in 20 countries, working with Fortune 500 companies and other highly innovative companies like yours with outstanding cables.
